METALUX

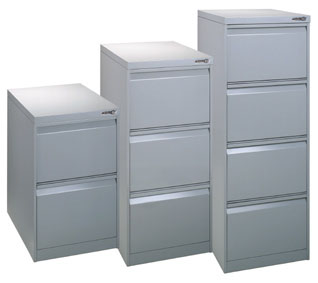

PRO-FILEŽ FILING CABINET Metalux
Pro-file is a cabinet with every feature you
could wish for.
The
carcass features a sturdy welded support frame,
spot-welded top and a metal base plate for
strength and stability.
Pro-file's
drawers are removable with integrated suspension
frames for filing as a standard fitting, with the
option of metal divider plates.
|
 |
A 3-stage ball bearing
runner system with buffers to reduce
metal to metal contact gives you smoother
tracking and extends fully to allow
complete access to every drawer. |
|
| |
Pro-file has been tested with a 30kg
load to over 50,000 cycles to ensure that it can
stand up to the toughest treatment.
For
safety, the runners have an anti-drift design and
incorporate a standard drawer lock-out
mechanism, which stops tilting by
preventing more than one drawer being open at the
same time.
|
 |
PRODUCT
SPECIFICATIONS
| External
Dimensions: |
|
|
| 2 Drawer: |
|
705mmH x 480mmW x
630mmD |
| 3 Drawer: |
|
1015mmH x 480mmW
x 630mmD |
| 4 Drawer: |
|
1322mmH x 480mmW
x 630mmD |
| Internal
Drawer Dimensions: |
|
240mmH x 390mmW x
555mmD |
| Storage
Capacity: |
|
|
| 2 Drawer: |
|
1.10 lineal
metres |
| 3 Drawer: |
|
1.67 lineal
metres |
| 4 Drawer: |
|
2.22 lineal
metres |
| Load
Capacity: |
|
30kg per drawer
(suspended) |
| Standard
Features: |
|
Compact lock |
| |
|
Internal cabinet
assembly |
| |
|
Suspension hanger
frames |
| |
|
Welded internal
cabinet frame |
| |
|
Zinc base plate |
| |
|
Removable drawers |
| |
|
Heavy-duty
ball-bearing runner system |
| |
|
Individual drawer
lock-out mechanism |
| |
|
Runners tested to
50,000 cycles with 30kg load |
| |
|
Provision for
divider plates |
| Finish: |
|
Baked enamel |
| |
|
3 standard
colours |
| |
|
Non-standard
colours subject to minimum quantities |
| Warranty: |
|
5 years |
